Custom XY-LK-18/415 18mm Screw perfume fine mist pump sprayer

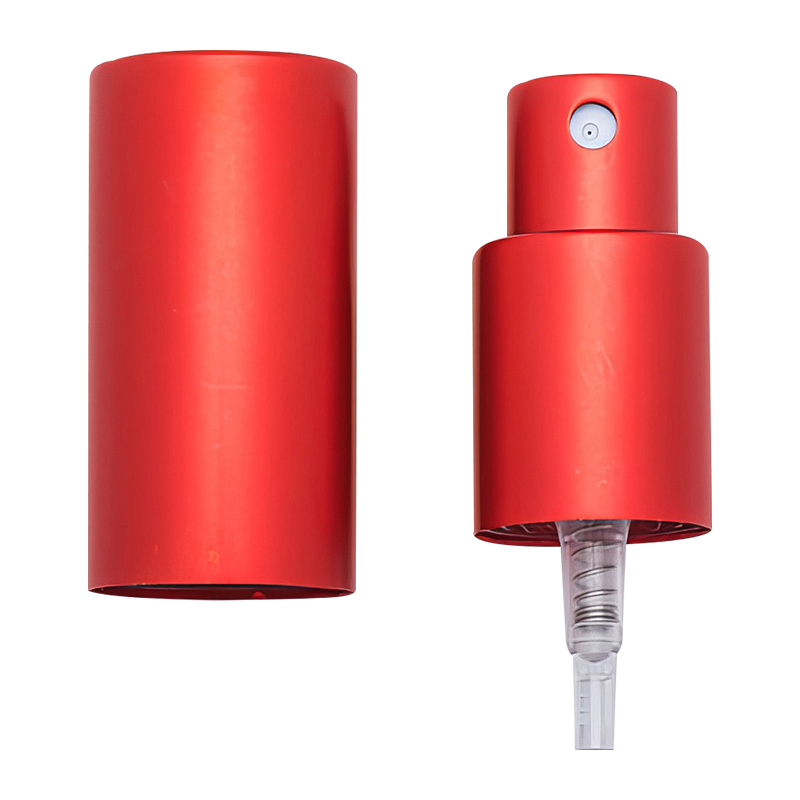

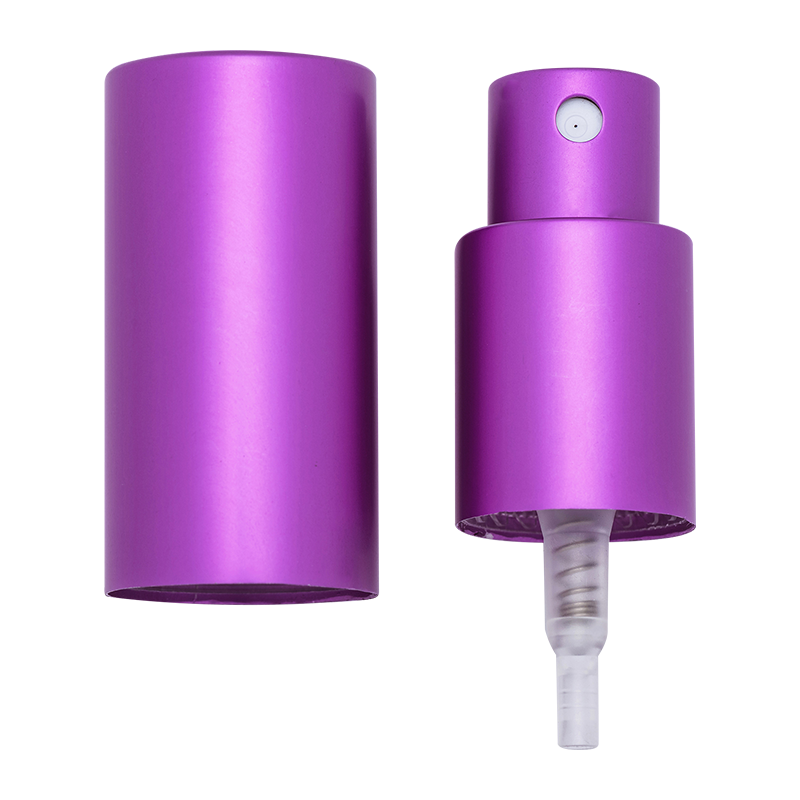

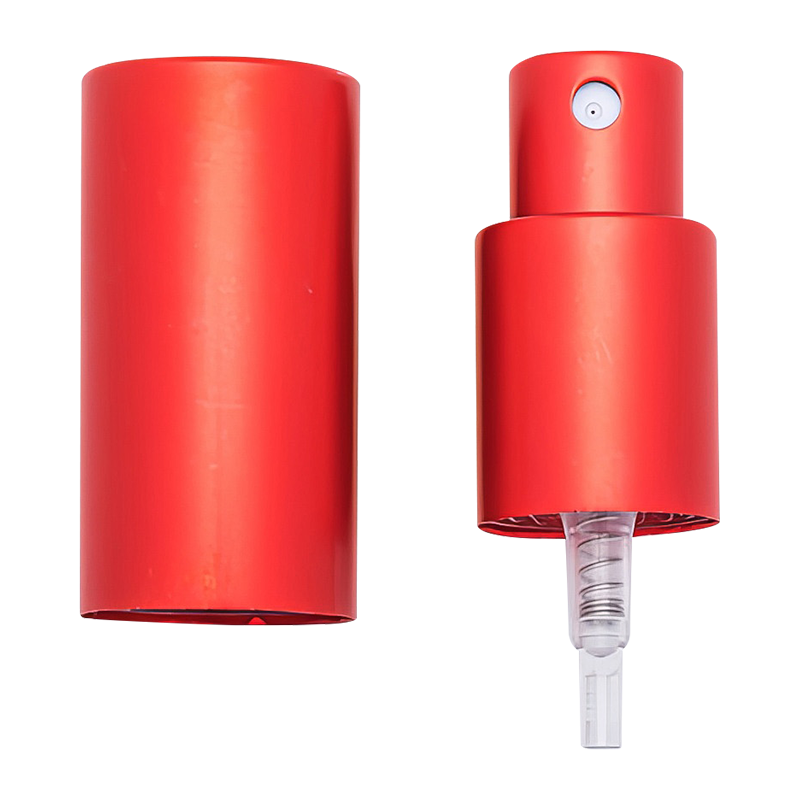

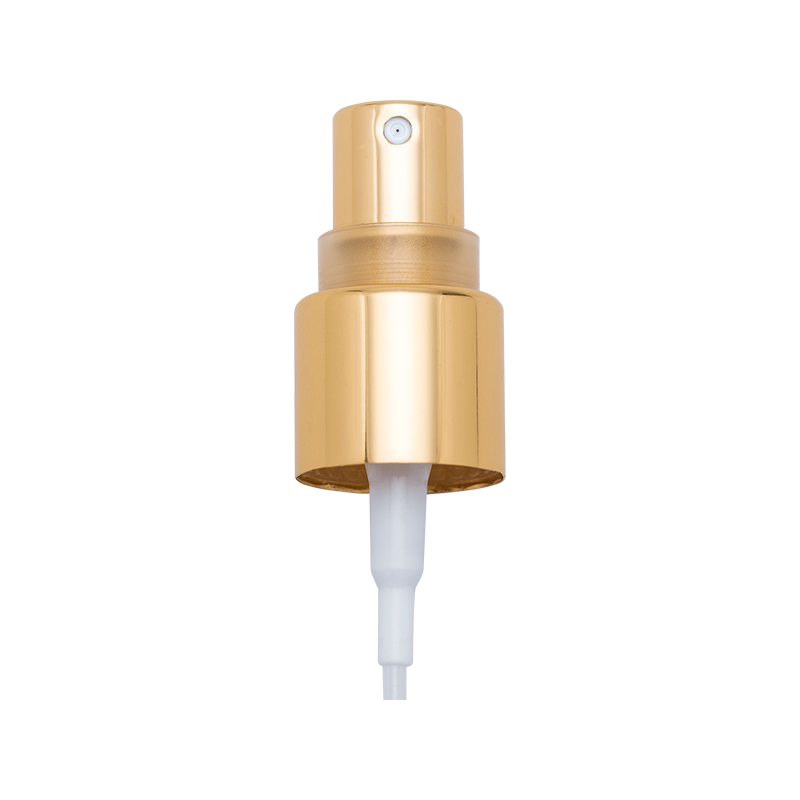

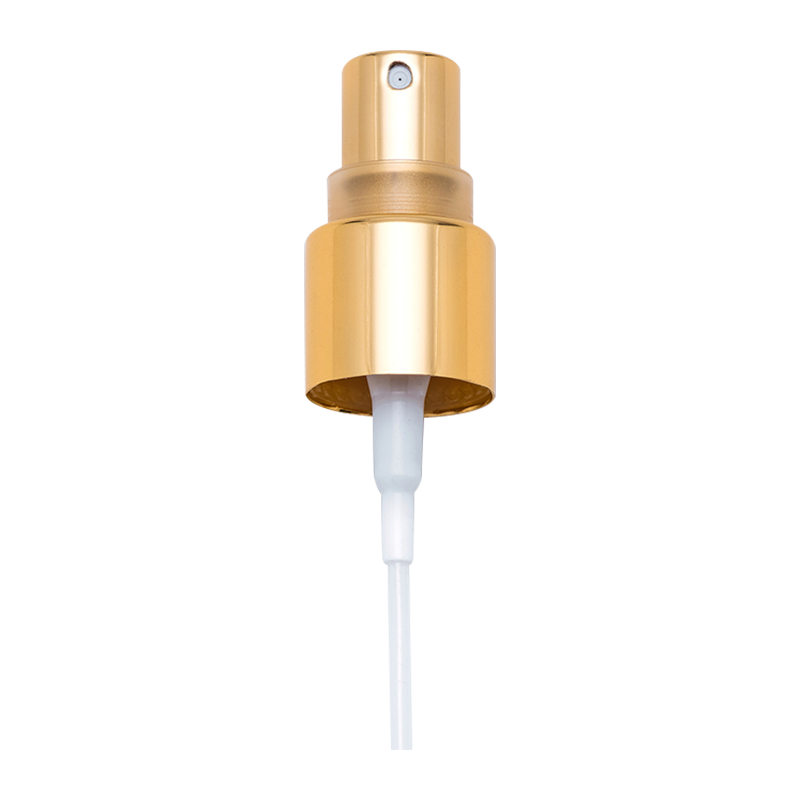

XY-LK-18/415 18mm Screw perfume fine mist pump sprayer

The 18mm Screw Perfume Fine Mist Pump Sprayer is a precision-engineered dispensing component designed for the controlled application of liquid fragrances and cosmetic formulations. Specifically configured with an 18/415 thread finish, this screw-on pump ensures a secure, leak-proof interface with compatible glass or plastic containers. The internal mechanism utilizes a pre-compression engine to atomize liquids into a consistent, wide-angle fine mist, minimizing droplet size for even distribution. Our manufacturing facility provides comprehensive customization services for the 18/415 series, including adjustments to dosage outputs (typically 0.05ml to 0.15ml), dip tube lengths, and material finishes. These pumps are available in various technical configurations, including plastic PP, metallic aluminum sheaths, and UV-coated surfaces to align with diverse brand aesthetics and functional requirements.

Contact Us
Detail drawing
Product Details Product Parameters Data Download
Product Details

Technical Specifications and Customization Guide for 18mm Screw Perfume Fine Mist Pump Sprayers

Core Technical Advantages

  • Threaded Security: The 18/415 screw closure allows for easy assembly and provides a mechanical seal that prevents evaporation and leakage during transit.
  • Uniform Atomization: Specialized nozzle geometry creates a homogeneous mist pattern, ensuring consistent coverage for alcohol-based perfumes.
  • Modular Customization: Supports a wide range of secondary processes, including anodized coloring, matte finishes, and logo embossing on the actuator or ferrule.
  • Dosage Precision: The pump engine is calibrated to deliver a fixed discharge volume per stroke, ensuring predictable product consumption for the end-user.

Product Characteristics

Technical Parameter Specification / Range
Neck Diameter 18mm
Thread Standard 18/415 Screw Neck
Dosage Per Stroke 0.05ml - 0.12ml (Customizable)
Material Options PP Plastic / Aluminum-Plastic / UV Coating
Dip Tube Material PE / Transparent or Semi-transparent
Closure Finish Ribbed / Smooth / Metal Sheathed

Primary Application Scenarios

  • Fine Fragrance Industry: Essential for EDT and EDP perfume bottles requiring a professional aesthetic and fine mist output.
  • Cosmetic Sprays: Utilized for facial mists, setting sprays, and hydrating toners that require gentle, non-concentrated application.
  • Essential Oil Blends: Compatible with diluted oil formulations for aromatherapy and room sprays.
  • Travel-size Products: The 18mm format is standardized for portable fragrance atomizers and sample-sized packaging.

Storage and Operational Guidelines

Storage Conditions

To maintain the integrity of the internal gaskets and springs, store pump sprayers in a dry, ventilated environment at room temperature. Avoid prolonged exposure to direct UV radiation, which can affect the color stability of anodized aluminum or plastic components. Keep the units in their original anti-dust polybags to prevent airborne particulates from entering the nozzle orifice.

Usage and Technical Tips

  • Chemical Compatibility: It is recommended to perform a compatibility test between the liquid formulation and the pump materials (PP, PE, and stainless steel springs) to ensure no chemical reactions occur over time.
  • Priming: Most pumps require 3 to 5 initial strokes to prime the engine and expel air before a consistent mist is achieved.
  • Dip Tube Selection: Ensure the dip tube length is measured accurately to the bottom of the bottle to prevent residual product waste. We provide precision cutting services for bulk orders.
Product Parameters

Product Name

18mm screw perfume fine mist pump sprayer

Feature

Non spill & Non leaks

Material

Aluminum & Plastic

Spring

304H stainless steel

Color

Customized

Tube Length

Customized

Packing Details

5000pcs/ctn; Inner-plastic bag; Outer-carton box

Carton Size

46*38*29

Free Sample

Available

Sample Time

5 days

Download
Download
Get In Touch
Zhangjiagang XinYe Chemical Sprayer Co., Ltd.
Welcome
To Xinye
Zhangjiagang XinYe Chemical Sprayer Co., Ltd. is a professional company engaged in the design, research and development, manufacturing, and sales services of perfume bottle pumps in the subdivision field. We are China XY-LK-18/415 18mm Screw perfume fine mist pump sprayer Manufacturers and Custom XY-LK-18/415 18mm Screw perfume fine mist pump sprayer Factory. The XY-LK-18/415 18mm Screw perfume fine mist pump sprayer is an important component of perfume bottle products, which not only affects the water usage experience, but also relates to the overall design and brand image of the product. If you need any help or advice about XY-LK-18/415 18mm Screw perfume fine mist pump sprayer, such as design, material selection, manufacturing processes, market trend analysis, etc., you can always contact Xinye's experts and we will do our better to provide assistance.
READ MORE
News Updates

XY-LK-18/415 18mm Screw perfume fine mist pump sprayer Industry knowledge

Why is the 18mm screw perfume fine mist pump sprayer suitable for specific perfume bottles? ​

The core adaptability of this spray pump comes from its precise size design. The 18mm thread specification is the best result obtained after repeated measurement and matching with the 18mm diameter perfume bottle mouth. This specific size matching not only allows the pump head to be tightly connected to the bottle body, avoiding loosening and falling off during transportation, carrying or use, but also provides a basic guarantee for subsequent sealing performance. During the production process of the 18mm screw perfume fine mist pump sprayer produced by Zhangjiagang XinYe Chemical Sprayer Co., Ltd., the pitch, tooth type and other parameters of the thread are strictly controlled, and the error is controlled within a very small range to ensure that each pump head can perfectly fit with the perfume bottle of the same specification. Whether it is a round, square or other special-shaped 18mm diameter perfume bottle, the pump head can be stably installed, providing reliable hardware support for the storage and use of perfume. ​

How does the threaded perfume fine mist spray pump achieve a uniform and delicate spray effect? ​

To achieve a uniform and delicate spray effect, it is inseparable from the complex and precise structural design inside the pump head. When the user presses the pump head, the piston in the pump generates pressure, which forces the perfume liquid out through the narrow channel. In this process, the liquid is subjected to pressure and interacts with the specially designed atomizer at the outlet, breaking it into fine droplets. When developing this spray pump, Zhangjiagang XinYe Chemical Sprayer Co., Ltd. conducted a lot of experiments and optimizations on the diameter, length, and shape of the channel and atomizer. It was found that when the channel diameter is controlled within a specific range and the atomizer adopts a specific pattern design, the liquid can form a vortex when spraying, further refining the droplets and making the droplet size more uniform. The spring and valve in the pump also play a key role. The spring can ensure rapid reset after pressing and ensure the stability of the pressure of each press. The valve can accurately control the flow of the liquid to avoid the situation where the spray is more or less, coarse or fine. It is the control of these details that enables the company's threaded perfume fine mist spray pump to provide a uniform and delicate effect every time it sprays, allowing the perfume to be distributed on the skin or clothing in the most ideal state.​

What are the characteristics of the material and sealing of the 18mm Screw perfume fine mist pump sprayer? ​

In terms of material selection, high-quality plastics and metals are the mainstream. High-quality plastics such as PET and PP have good chemical stability and will not react with alcohol, essence and other ingredients in perfume, ensuring that the original fragrance and quality of the perfume are not affected. These plastic materials have been specially processed and have a certain hardness and toughness. They are not easy to deform or crack, and can withstand the pressure and collision in daily use. Metal materials such as aluminum alloy and stainless steel are more used in high-end products, which not only improve the texture and beauty of the pump head, but also have stronger durability. In terms of sealing, this type of pump head usually adopts a multi-layer sealing design, including sealing rings, gaskets and other components. The sealing ring used in the 18mm threaded perfume fine mist spray pump of Zhangjiagang XinYe Chemical Sprayer Co., Ltd. is made of food-grade silicone material, which has excellent elasticity and sealing. It can fit tightly between the connection between the pump head and the bottle body and the various interfaces in the pump, effectively blocking air from entering and perfume volatilization. Even if the perfume bottle is inverted or squeezed, it can prevent perfume leakage, ensuring that the perfume will not be reduced due to volatilization during long-term storage, nor will it cause waste or pollution due to leakage. ​

What are the main applications of threaded perfume fine mist spray pumps? ​

Due to its convenient, precise and elegant use characteristics, 18mm threaded perfume fine mist spray pumps are widely used in the field of high-end perfumes. In daily use scenarios, whether it is home dressing, going out for a date or business occasions, users only need to gently press the pump head to easily spray out the right amount of perfume, avoiding the waste and inconvenience of traditional pouring methods. Its delicate spray effect allows the perfume to emit fragrance more naturally, without the situation of excessive local fragrance, which meets the elegant use experience pursued by high-end perfumes. In the product line of high-end perfume brands, whether it is classic or limited edition, Zhangjiagang XinYe Chemical Sprayer Co., Ltd.'s threaded perfume fine mist spray pump supports it. Some niche luxury perfume brands pay attention to every detail of their products, from bottle design to pump head selection. The high quality and elegant appearance of the company's pump head are consistent with the positioning of these brands and can enhance the overall texture of the product. The pump head can also play an important role in the display and trial of perfumes. The delicate spray allows consumers to more intuitively feel the fragrance and effect of the perfume, which helps to promote product sales.
